RTLS Platform

Real Time Location System

Location Tracing Traceability

OF ASSETS THROUGH BLE DEVICES

Allows tracking and traceability of people, animals or objects that carry BLE devices, both indoors and outdoors

Low cost

Have a real-time location system at a fraction of the cost of other competitors with WiFi or RFID-based systems

Easy deployment

Study of requirements and locations to be monitored and quick required hardware installation and configuration for its management with BTraZing

Cloud based

Simple and intuitive elements and assets configuration from the BTraZing interface with your user account

Traceability of the movement of people and objects

Bluetooth Low Energy

BLE for Location

BLE (Bluetooth Low Energy) is based on the use of standard 2.4GHz Bluetooth radio protocols between transmitters or TAGS , which are in motion (carried by people / objects) and fixed receivers or LOCATORS distributed in the installation, which are able to identify the position of the item, with greater or lesser precision, depending on the solution configured for each project.

Location Typologies

The 3Ps of Indoor Location

There are 3 detection typologies in Indoor Location , each of which gives rise to a deployment of Locators and a different BTraZing configuration that it will apply to use cases with different location needs.

Presence

Presence detection is used to identify whether a person / object is present in an area or not. The location of the person / object within the area cannot be identified. Only if it has entered and is there or not.

PRECISION: It is / It is not

Proximity

Proximity solutions identify the presence and location of people / objects in different areas or areas within a location. It allows the location and traceability of the person / object by zones.

PRECISION: 5 – 20m

Positioning


PRECISION: 5cm – 1m

Configurations

Two BLE technologies - Two different needs

STANDARD BLUETOOTH

The detection is carried out using standard Bluetooth locators (antennas), whose acquisition allows the discrimination of the position of the object / person with an accuracy of one to five / ten meters. Ideal for distribution by areas or rooms.

ANGLE OF ARRIVAL

Locators have several antennas and use BLE Angle of Arrival * technology, which allows to know the angle of arrival of the signal emitted by BLE tags and therefore reach an accuracy of centimeters in the location of the object / person.

* QUUPPA: European leader in indoor precision positioning systems, based on BLE technology.

Social distancing

TraceBack: Historical traceability to detect social proximity

Detected a "positive" in your company?

Worried about INFECTion chains?

In BTraZing we have all the positions (coordinates) of every person in the different ubications. With this information, we can know the time a person has been close to another, less than 2 meters

Availability of proximity reports to locate, in a certain time range (the last 15 days, for example), the people with whom that employee has been in close contact, whether employees or visitors.

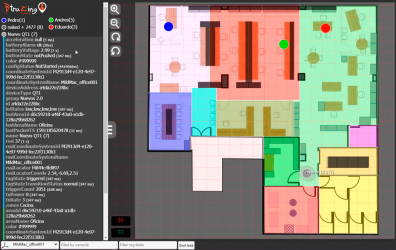

real-time-tracking-map-coordinates
BTRAZING: Real Time Tracking Map - Coordinates
Employee list: access to proximity history
real-time-tracking-map-con-icono
BTRAZING: Real Time Tracking Map Video
Employee proximity history

Btrazing elements

MULTI BRAND LOCATORS & TAGS

Broadcasting

BLE Tags

Several types, sizes and nature BLE (Bluetooth) devices which are ported and associated to the different mobile assets to be monitored (people, objects, animals …) that continuously transmit signals to the Locators

receiving

Locators

BLE-WiFi/Ethernet gateway devices distributed in different rooms of the enclosure to be monitored, continuously receive the signals emitted by the BLE Tags and send them to the platform.

Management

BTraZing Core

BtraZing consists of a core and listening services, capturing and storing all information coming from the Locators.

Actions of all kinds can be performed through its operation panel: configure all the required hardware elements, creation, assignment and tracking of assets (people, objects …), warnings and alarms management and interconnection with other Applications.

Processing

Location Algorithms

BTraZing has different Location algorithms (Proximity, Machine Learning & Neural Networks, Arrival Angle Trilateration), selecting in each case the most appropriate for each type of project.

Information

Reports and analytics

The location engine provides BLE Tags presence information in real time with analysis of movements, timestamps, location changes and duration times

FUNCTIONALITIES

group of people in the lobby business center

Location of people and objects

It facilitates the location of people and objects, knowing exactly their locations in space and time, facilitating the optimization of spaces and transit places

Traceability of displacements

It shows the traceability of the movements and displacements of people / objects and their distribution over time: where they pass, where they stay longer, etc.

Presence control

It allows access controls and employee presence, hourly reports (entrances / exits), time spent in the building, and all this in a non-intrusive way, without the need for intervention by the employee

Security

Online monitoring: Being able to know in real time the people and objects location it is possible to optimize the response and better plan the resources of organization for rescue in case of special events or disasters

Logistics: It allows to know where the monitored objects are at all times and their routes, facilitating their inventory and avoiding their loss. Nothing is lost

Resources protection through DIGITAL alerts

Surveillance areas are established generating alerts and programmed alarms based on established parameters (e.g., when an individual or object leaves the assigned area or takes too long without moving from the same place, subtraction of objects, etc.).

Software connectivity: through API with external applications for decision making and actions. For example, connection with switchboard for warning calls, connection with APPs, Email, SMS, Whatsapp …

Resources protection through PHYSICAL alerts

Surveillance areas are established generating alerts and programmed alarms based on established parameters (e.g., when an individual or object leaves the assigned area or takes too long without moving from the same place, subtraction of objects, etc.).

Hardware connectivity: control of physical actuators (relays) that allow activating / deactivating devices based on configured parameters (for example, turning off lights when no one is in a room, turning them on when a person is detected, etc.)

Use cases

IF YOU DON´T FIND SOMETHING WITH BTRAZING, IT IS THAT IT IS NOT

Request information

Latest Blog Articles

  • BTraZing Elder al rescate de nuestros mayores
    on October 15, 2019 at 10:47 am

    Lamentablemente, esta mañana nos hemos desayunado con una triste noticia publicada en Antena3TV: Una anciana con alzheimer muere congelada tras salir del geriátrico en el que residía Nuestras sinceras condolencias a los familiares y lamentamos tremendamente el suceso, pues estamos seguros que los trabajadores de la Residencia hicieron todo lo que estaba en su mano para

  • Interés por BTraZing Elder en ASLAN 2019
    on April 8, 2019 at 11:14 am

    Un año más, ASLAN, que tuvo lugar los días 3 y 4 de abril en Madrid, acogió la nueva propuesta de evolución de nuestra tecnología BtraZing, orientada en esta ocasión al segmento de las Residencias de Mayores y sus problemáticas específicas.  Mildmac  ha aprovechado nuevamente la oportunidad de mostrar, en uno de los congresos tecnológicos

  • MILDMAC en ASLAN 2019 con BTraZing Elder
    on March 21, 2019 at 12:25 pm

    La Asociación @asLAN organiza la vigésimo sexta edición de este Congreso anual nacional bajo el título “Enabling Digital Transformation”, con la participación de más de 100 compañías especializadas en “Servicios, aplicaciones e infraestructuras conectadas para hacer posible la Transformación Digital” y el apoyo de las principales instituciones del Sector. Un gran evento anual que reunirá

  • Evolucionando BTraZing
    on May 11, 2018 at 9:24 am

    En Mildmac estamos felices de la evolución que estamos dando a nuestro último desarrollo, BtraZing, la plataforma de localización, seguimiento y trazabilidad de activos en interiores mediante dispositivos BLE, que tan buena acogida obtuvo en el pasado ASLAN 2018 en donde realizamos la presentación oficial de la Release 1.0. Gracias al esfuerzo de los 2 últimos años

TAGS BLE PERSONALIZADOS

Personalizamos funcionalmente los tags BLE para adaptarnos a las necesidades del proyecto y de los usuarios.
Diseñamos pulseras para niños, de seguridad para mayores, desechables para entornos médicos, tarjeteros BLE corporativos, tags sumergibles, tags con sensorización, etc.

Si tiene alguna funcionalidad que precisa de tags que no encuentra en el mercado, no dude en contactarnos.

LOCATORS PERSONALIZADOS

Dependiendo de la tipología de proyecto utilizamos locators diferentes, tanto propios de Mildmac, como de diferentes marcas del mercado.

Atención especial a los locators basados en “Angle of Arrival” de QUUPPA, utilizados para aquellos proyectos que requieren precisión centimétrica.

También disponemos de Locators personalizados para exteriores, para aguantar altas/bajas temperaturas y condiciones climáticas adversas (IP65)

CUSTOM BLE TAGS

We functionally customize BLE tags to adapt to the needs of the project and users.
We design bracelets for children, safety for the elderly, disposable for medical environments, corporate BLE card holders, submersible tags, sensor tags, etc.

If you have any functionality that requires tags that you do not find in the market, do not hesitate to contact us.

CUSTOM LOCATORS

Depending on the type of project we use different locators, both from Mildmac, and from different brands in the market.

Special attention to locators based on “Angle of Arrival” by QUUPPA, used for projects that require centimeter accuracy.

We also have custom Locators for outdoors, to withstand high / low temperatures and adverse weather conditions (IP65)
